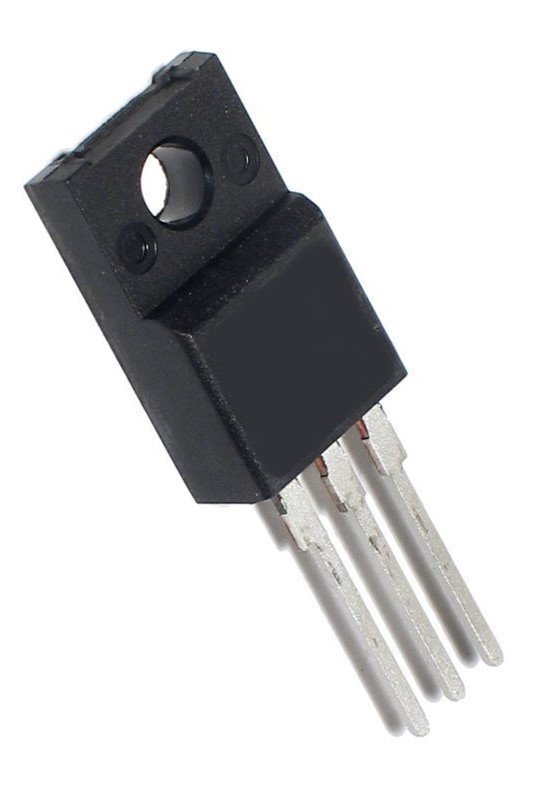

2SB941-P TO-220F 3A 60V 35W PNP TRANSISTOR
41,05 TL
2SB941
Type Designator: 2SB941
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 35 W
Maximum Collector-Base Voltage |Vcb|: 60 V
Maximum Collector-Emitter Voltage |Vce|: 45 V
Maximum Emitter-Base Voltage |Veb|: 6 V
Maximum Collector Current |Ic max|: 3 A
Max. Operating Junction Temperature (Tj): 150 °C
Forward Current Transfer Ratio (hFE), MIN: 100
Noise Figure, dB: -
