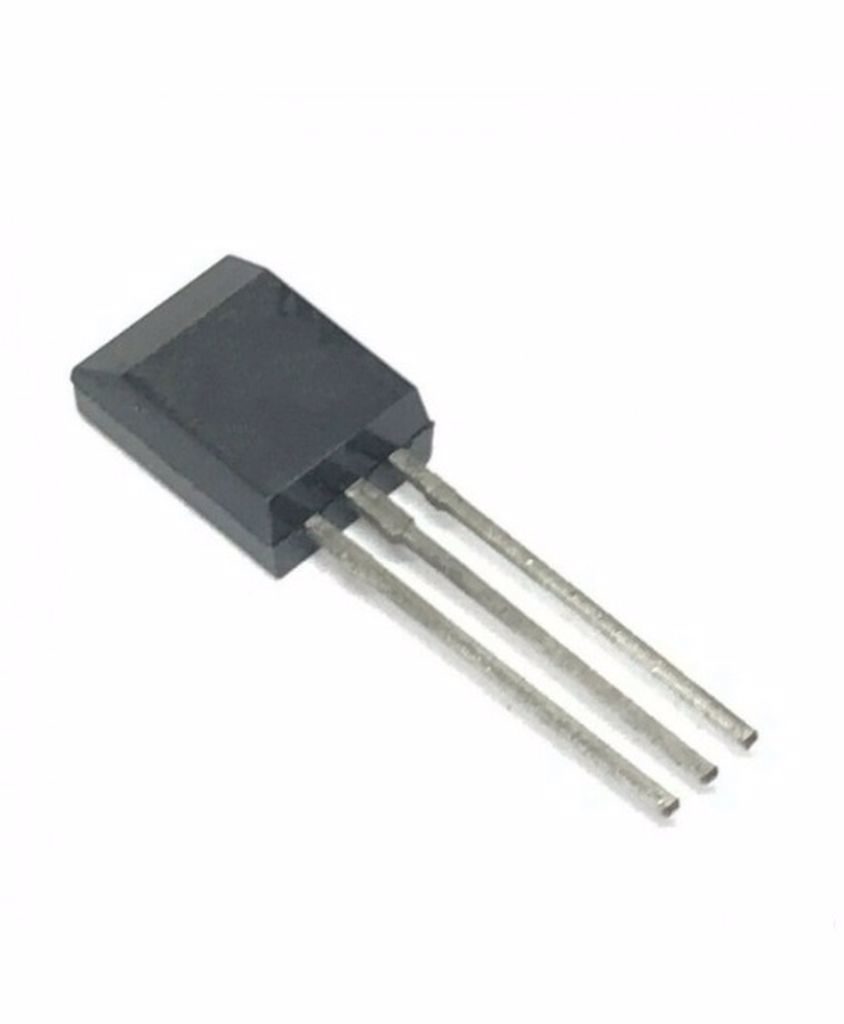

2SB733

Type Designator: 2SB733

Material of Transistor: Si

Polarity: PNP

Maximum Collector Power Dissipation (Pc): 1 W

Maximum Collector-Base Voltage |Vcb|: 20 V

Maximum Emitter-Base Voltage |Veb|: 6 V

Maximum Collector Current |Ic max|: 2 A

Max. Operating Junction Temperature (Tj): 150 °C

Transition Frequency (ft): 50 MHz

Collector Capacitance (Cc): 27 pF

Forward Current Transfer Ratio (hFE), MIN: 300

Noise Figure, dB: -
